Product

Weighing

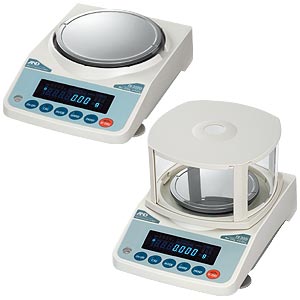

FX-i Series

Precision Balances

	Realizing compact, increasing functions!


	Development Story
	Brochure (PDF 555KB)
	Manual (PDF 1,843KB)
	Manual for WinCT-Plus (PDF 1,437KB)

Features

Compact, B5 size footprint

Fast, 1 second stabilization

Shock absorber function

Large bright vacuum fluorescent display

Multiple weighing units

GLP/GMP/GCP/ISO compliant

Statistical calculation function

Response adjustment function

ACAI – Automatic Counting Accuracy Improvement

Built-in rechargeable battery (optional)

External Input / Output

RS-232C interface
Quick USB interface (optional)
LAN – Ethernet interface with WinCT-Plus software (optional)

Option

FXi-02 : Quick USB interface with cable
FXi-08 : Ethernet interface with WinCT-Plus software
FXi-09 : Built-in rechargeable battery
FXi-10 : Small breeze break
FXi-11 : Large breeze break
FXi-12 : Animal weighing pan (FX-1200i / 2000i / 3000i / 5000i)
FXi-15 : Carrying case
* FXi-02, FXi-08 and FXi-09 cannot be used at the same time.

Accessories

AD-1683 : Static eliminator
AD-1684 : Electrostatic fieldmeter
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-8920A : Remote display
AD-8922A : Remote controller
AD-8121B : Compact printer
AD-8118C : Universal printer
AD-8526 : Serial/Ethernet converter
AD-8527 : Quick USB adapter
AX-USB-9P : Serial/USB converter
AX-KO2466-200 : RS-232C cable (9P-9P)
AX-CARATPAN-W : Carat pan (silver, 2 pcs)
AX-CARATPAN-B : Carat pan (black, 2 pcs)
AX-FXi-31: Main unit cover (5 pcs)

Specifications

Model		FX-120i	FX-200i	FX-300i	FX-500i	FX-1200i	FX-2000i	FX-3000i	FX-5000i
Weighing capacity		122 g	220 g	320 g	520 g	1220 g	2200 g	3200 g	5200 g
Minimum weighing value		0.001 g				0.01 g
Counting mode	Minimum unit mass	0.001 g				0.01 g
	Number of samples	5, 10, 25, 50 or 100 pieces
Percent mode	Minimum 100% reference mass	0.100 g				1.00 g
	Minimum 100% display	0.01%, 0.1%, 1% (depends on the reference mass stored)
Weighing pan (diameter)		130 mm				150 mm
