Product

Weighing

FX-iWP Series
Dust & Water-Proof Precision Balances

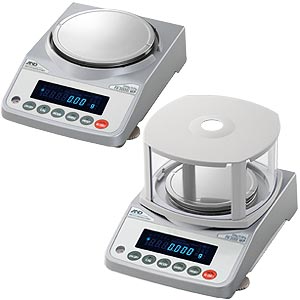

FX-300iWP,FX-3000iWP The world’s first IP65 compliant, dust & water proof
precision (1mg) balances!

PDFBrochure (PDF 718KB)
PDFManual (PDF 2,236KB)
PDFManual for WinCT-Plus (PDF 1,437KB)
PDFFX-iWP Waterproof test for compliance with IP65 (PDF 73KB )

MOVIEBroadband network 1.0Mbps or faster (To download, right-click here)
MOVIEBroadband network 340Kbps or faster (To download, right-click here)

Super Hybrid Sensor VFD Display External Calibration Quick USB LAN-Ethernet Interface RS-232C Interface GLP Compliant Counting Function Percentage Function Animal Weighing Statistical Calculation Comparator Function Auto Power ON Auto Power OFF Underhook
Rechargeble Battery IP65 Software
Features
IP65 compliant, dust and water proof
Compact, B5 size footprint
Fast, 1 second stabilization
Shock absorber function
Large bright vacuum fluorescent display
Multiple weighing units
GLP/GMP/GCP/ISO compliant
Statistical calculation function
Response adjustment function
ACAI – Automatic Counting Accuracy Improvement
External I/O
RS-232C interface
Quick USB interface (optional)
LAN – Ethernet interface with WinCT-Plus software (optional)
Option
FXi-02 : Quick USB interface with cable
FXi-08 : Ethernet interface with WinCT-Plus software
FXi-09 : Built-in rechargeable battery
FXi-WP-10 : Small breeze break
FXi-WP-11 : Large breeze break
FXi-12 : Animal weighing pan
FXi-15 : Carrying case
* FXi-02, FXi-08 and FXi-09 cannot be used at the same time. ** The FX-iWP is not IP65 compliant with FXi-02, FXi-08 or FXi-09.
Accessories
AD-1683 : Static eliminator
AD-1684 : Electrostatic field meter
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-8920A : Remote display
AD-8922A : Remote controller
AD-8121B : Compact printer
AD-8118C : Universal printer
AD-8526 : Serial/Ethernet converter
AD-8527 : Quick USB adapter
AX-USB-9P : Serial/USB converter
AX-KO2466-200 : RS-232C cable (9P-9P)
AX-KO2737-500 : Dust and water-proof RS-232C cable (9P-9P, 5m)
AX-CARATPAN-W : Carat pan (silver, 2pcs)
AX-CARATPAN-B : Carat pan (black, 2pcs)
AX-FXi-31: Main unit cover (5pcs)
Specifications
Model FX-120iWP FX-200iWP FX-300iWP FX-1200iWP FX-2000iWP FX-3000iWP
Weighing capacity 122g 220g 320g 1220g 2200g 3200g
Minimum weighing value 0.001g 0.01g
Counting mode Minimum unit mass 0.001g 0.01g
Number of samples 5, 10, 25, 50 or 100 pieces
Percent mode Minimum 100% reference mass 0.100g 1.00g
Minimum 100% display 0.01%, 0.1%, 1% (depends on the reference mass stored)
Weighing pan (diameter) 130mm 150mm
