Product

Weighing

FZ-i Series
Precision Balances with an Internal Mass

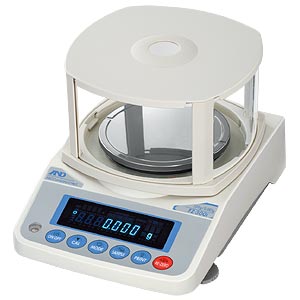

FZ-300i , FXi-10 High Functionality You Can Afford!

PDFBrochure (PDF 686KB)
PDFManual (PDF 1,812KB)
PDFAdditional information (PDF 207KB)
PDFManual for WinCT-Plus (PDF 1,437KB)
Super Hybrid Sensor VFD Display Internal Calibration Quick USB LAN-Ethernet Interface RS-232C Interface GLP Compliant Counting Function Percentage Function Animal Weighing Statistical Calculation Comparator Function Auto Power ON Auto Power OFF Underhook
Rechargeble Battery Software
Features
One touch automatic calibration
Compact, B5 size footprint
Fast, 1 second stabilization
Large bright Vacuum Fluorescent Display
Shock absorber function
Multiple weighing units
GLP/GMP/GCP/ISO compliant
Statistical calculation function
Response adjustment function
ACAI – Automatic Counting Accuracy Improvement
Built-in rechargeable battery (optional)
External Input / Output
RS-232C interface
Quick USB interface (optional)
LAN – Ethernet interface with WinCT-Plus software (optional)
Option
FXi-02 : Quick USB interface with cable
FXi-08 : Ethernet interface with WinCT-Plus software
FXi-09 : Built-in rechargeable battery
FXi-10 : Small breeze break
FXi-11 : Large breeze break
FXi-12 : Animal weighing pan (FZ-1200i / 2000i / 3000i)
FXi-15 : Carrying case
* FX-02, FXi-08 and FXi-09 cannot be used at the same time.
Accessories
AD-1683 : Static Eliminator
AD-1684 : Electrostatic Fieldmeter
AD-1689 : Tweezers for Calibration Weight
AD-8920A : Remote Display
AD-8922A : Remote Controller
AD-8121B : Compact printer
AD-8118C : Universal Printer
AD-8526 : Serial / Ethernet Converter
AX-USB-9P : Serial / USB Converter
AX-KO2466-200 : RS-232C Cable (9P-9P)
AX-CARATPAN-W : Carat pan (silver, 2pcs.)
AX-CARATPAN-B : Carat pan (black, 2pcs.)
AX-FXi-31 : Main Unit Cover (5pcs.)
Specifications
Model FZ-120i FZ-200i FZ-300i FZ-1200i FZ-2000i FZ-3000i
Weighing capacity 122g 220g 320g 1220g 2200g 3200g
Minimum weighing value 0.001g 0.01g
Counting mode Minimum unit mass 0.001g 0.01g
Number of samples 5, 10, 25, 50 or 100 pieces
Percent mode Minimum 100% reference mass 0.100g 1.00g
Minimum 100% display 0.01%, 0.1%, 1% (depends on the reference mass stored)
Weighing pan (diameter) 130mm 150mm
