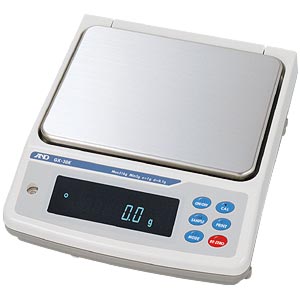

GX-K Series
Precision Industrial Balances with an Internal Calibration Mass
GX-K Dust & water-proof, medium-capacity
industrial balance


PDFBrochure (PDF 753KB)
PDFManual (PDF 4,877KB)

Super Hybrid Sensor VFD Display Internal Calibration RS-232C Interface GLP Compliant Counting Function Percentage Function Animal Weighing Accumulation Function Comparator Function Auto Power ON Auto Power OFF Underhook Smart Range EC Type Approval
IP65 Software
Features
IP65 compliant, dust and water proof
Automatic self calibration
Automatic response adjustment
Fast stabilization of approx. 1.5 seconds
Large bright vacuum fluorescent display
Animal weighing (hold) function
GLP/GMP/GCP/ISO compliant output
Data memory / accumulation function
Multiple weighing units & programmable unit
ACAI – Automatic Counting Accuracy Improvement
External Input/Output
RS-232C interface
Analog output (optional)
Current loop output (optional)
Comparator output with a buzzer (optional)
Options
GX-04K : Comparator output with a buzzer/RS-232C/Current loop output
GX-06K : Analog output/Current loop output
GX-07K : Waterproof RS-232C cable (25P-9P, 5 m)
GXK-012 : Animal weighing pan
GXK-015 : Carrying case
   *GX-04K, GX-06K and the standard RS-232C cannot be used at the same time.
   ** The GX-K is not IP65 compliant with GX-04K and GX-06K.
Accessories
AD-1682 : Rechargeable battery unit
AD-1683 : Static eliminator
AD-1684 : Electrostatic fieldmeter
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-8121B : Compact printer
AD-8526 : Serial/Ethernet converter
AD-8527 : Quick USB adapter
AD-8920A : Remote display
AD-8922A : Remote controller
AX-USB-25P : Serial/USB converter
AX-KO1710-200 : RS-232C cable (25P-9P)
AX-SW128 : Foot switch
AX-GXK-31 : Breeze break for GX/F-K
Specifications
Model GX-8K GX-8K2* GX-10K GX-12K GX-20K GX-30K GX-32K*
Weighing capacity 8.1 kg 8.1 kg /
2.1 kg		 10.1 kg 12 kg 21 kg 31 kg 31 kg /
6.1 kg
Minimum weighing value 0.01 g 0.1 g /
0.01 g		 0.01 g 0.1 g 1 g /
0.1 g
Counting mode Minimum unit mass 0.01 g 0.1 g 0.01 g 0.1 g 1 g
Number of samples 10, 25, 50 or 100 pieces
Percent mode Minimum 100% reference mass 1 g 10 g 1 g 10 g 100 g
Minimum 100% display 0.01%, 0.1%, 1% (depends on the reference mass stored)
Weighing pan 270 mm × 210 mm
   * Smart range function: The display returns to the precision range by pressing the RE-ZERO (tare) key regardless of the tare value.
