AD-6106R

Barrier-free Scale (for Wheelchairs)


	The AD-6106R is a low, flat scale that can be easily accessed by people using wheelchairs.
	Brochure (PDF 986 KB)

Features

Thin 69 mm scale allows easy access by wheelchairs

Can be placed upright for storage in a small space

Side guards ensure safe loading

3-way movement for easy passage through narrow aisles and doors

Easy to get on and off with movable slope

Can display measurements in kg

Tare function

RS-232C expansion termina

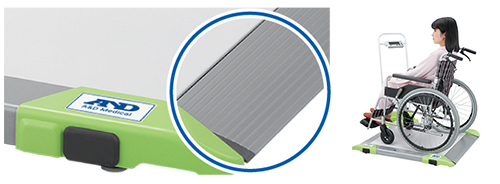

Movable slopes

The ramp goes up and down depending on the weight of the wheelchair.The ramp goes up and down depending on the weight of the wheelchair.

Reduces burden during transportation and installation

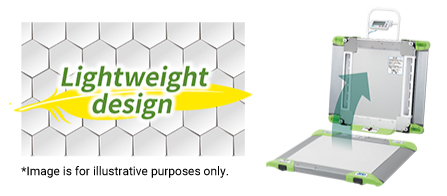

Light and strong “honeycomb design”

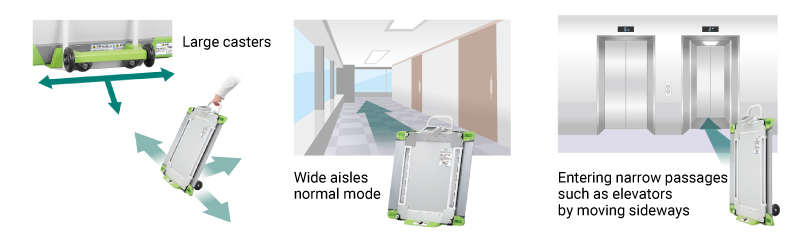

3-way movement

AD Printer Unit (AD-PR580)

Printer installation kit is required for mounting on the stand

Options

Printer paper(5 pieces/box)

AD printer unit

Printer installation kit

AC Adapter for AD-PR580*

AC code for AX-BLS-120W*
* This is an accessory for the AD-PR580.

Specifications

Designated paper		AX-PR147-S W 58 mm x L 29 m
Power supply		AC adapter(AS-BLS-120W)
Approval class		III ⁽³⁾
Capacity		200 kg
Graduation		0.1 kg < 150 kg > 0.2 kg
Measurement Range		2 kg to 200 kg
Power Source		AC Adapter(AX-TB294) / 4 Batteries LR20(D)
Battery Life		Approx. 40 hours (Battery use)
Interface		RC232C (D-SUB 9P)
Dimensions (W) x (D) x (H)		Scales: 845 x 947 x 69-79 mm / Platform: 659 x 704 x 69-79 mm / Stand: 418 x 314 x 961 mm
Weight		17.7 kg (Unit without batteries)

・Please purchase an AC adapter that complies with the standards of your region.
・Ensure that the product complies with the regulatory requirements of the country where it will be used before use.
・Specifications may differ in each country. Please contact an A&D subsidiary for more information.
