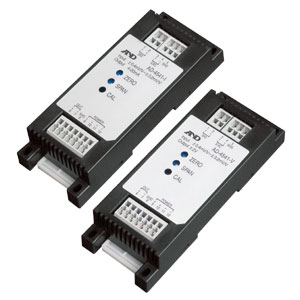

| AD-4541-V/I |
| Ultra-slim analog signal conditioners |
 |
The AD-4541-V and AD-4541-I analog signal conditioners can convert the signal received from a bridge type sensor such as a load cell, pressure sensor, strain gauge, etc. to a voltage output (AD-4541-V / -2V to +2V) or a current output (AD-4541-I / 4-20mA). |
 |
 Brochure (PDF 451KB) |
| Manual (PDF 146KB) |
| |
| |
| |
|
|
|
| Features |
 Ultra-slim, lightweight and easy-to-install
Calibration can be performed with the ZERO / SPAN volume controls or the CAL switch
Provides a wide-range zero adjustment (±1.6mV/V) / span adjustment (0.4~3.2mV/V) for use with various bridge type sensors
No crimping terminal is necessary because a spring clamp terminal block is used for easy wiring. |
|
| Block Diagram |
 |
|
Some characters may be garbled as the original CAD data is in Japanese.
