HW-D-C / HW-D-CP
Static Weighing Indicator

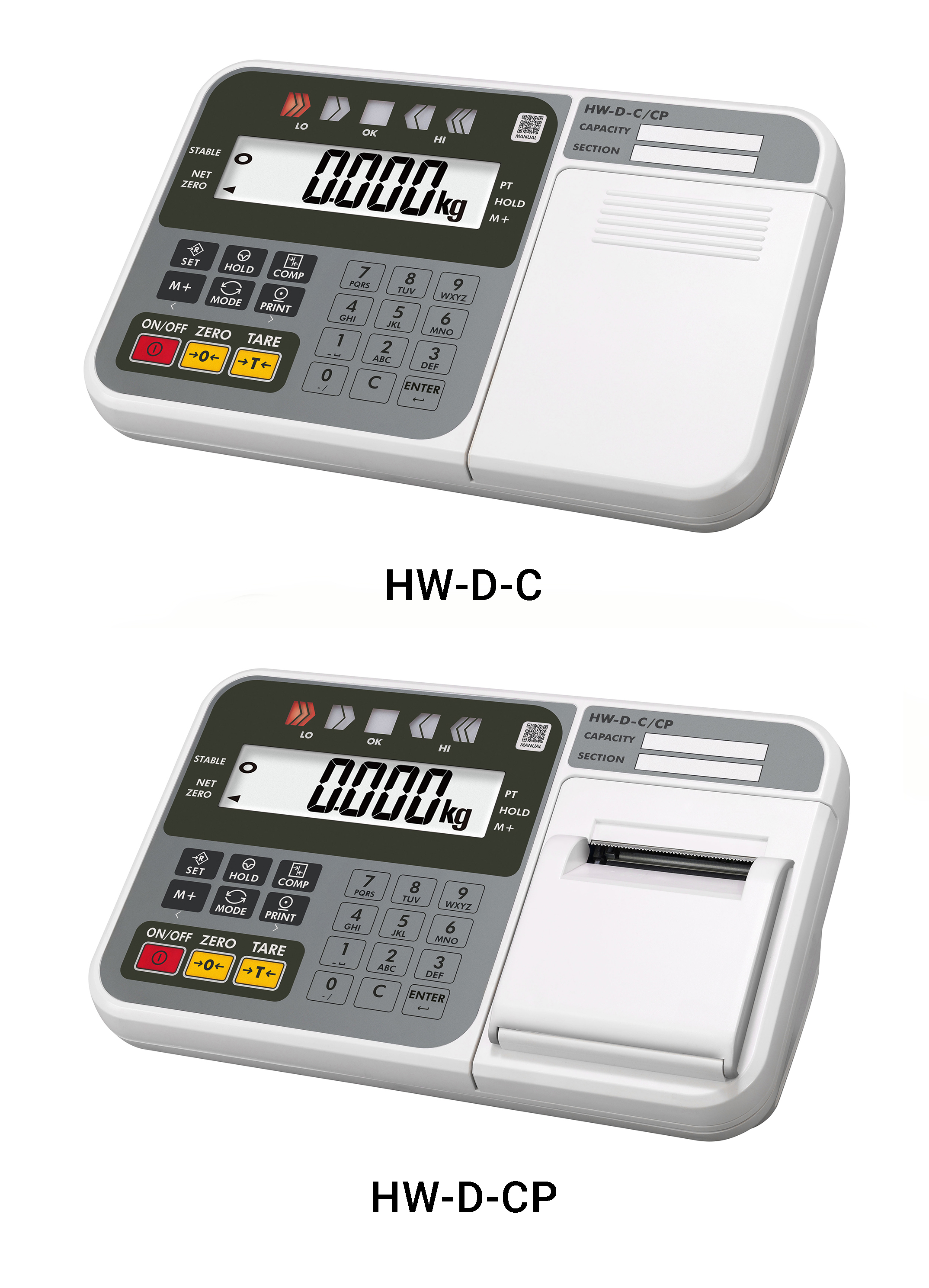

HW-D-C/HW-D-CP
Designed for Versatile Weighing Applications,
 Excelling at Checkweighing
PDFFlyer (PDF 416 KB)
PDFManual for the HW-D-C/HW-D-CP (PDF 2.7 MB)
PDFQuick Start Guide (PDF 5.8 MB)
PDFManual for the HV/W-C & HV/W-CP series (PDF 2.2 MB)

The HW-D-C/HW-D-CP is a derivative of the display unit of the HV/W-C & HV/W-CP series of multi-functional platform scales.
LCD Backlight User Access Control GLP / GMP Compliant Date & Time
HW-D-CP		 Counting Function Accumulation Function Comparator Function Auto Power ON Auto Power OFF Normal Battery
HW-D-C		 Universal Flexi Coms
Optional
Bidirectional USB RS-232C Interface Bluetooth® Interface
Please send your inquiry here
Features
Bright, multi-colored LED comparator lights for efficient checkweighing, supporting 3- to 5-level comparison and up to 7-level grading
Stores up to 100 comparator limit settings for quick changeovers between different targets
Zero/Tare memory for retaining zero/tare values and last reading after power-off, enabling seamless restart
Drive capacity of up to four 350 Ω load cells with a remote sensing function
Flexible configuration of weighing capacity and readability (max. display resolution: 1/60,000)
Clear LCD with white backlight (character height: 26 mm) for easy reading in any environment
Alphanumeric keypad for quick entry of preset tare values, comparator limits, and other settings
Built-in printer for time-stamped data output without extra devices (HW-D-CP)
Auto-tare and negative comparison functions for efficient "take-away" checkweighing
Universal Flexi Coms (UFC) for customizable print layouts and data output *1
Accumulation function for totaling and count tracking of multiple weighings
Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
GMP/GLP compliant output to meet documentation requirements
Display hold function for easier reading and recording in unstable environments
Counting mode to count a number of small pieces of the same mass value instantly and precisely
Auto power ON and OFF functions
Key restriction function for preventing unintended operator actions
Three slots for optional data communication interfaces
Operation with either AC adapter or four D batteries (HW-D-C only)

*1 For editing and sending UFC setting commands, download WinCT-UFC here.
External Input/Output
USB interface (optional)
RS-232C interface (optional)
Comparator relay output/buzzer/contact input interface (optional)
Bluetooth® interface (optional)
Options
HVW-02CB : USB interface (bi-directional, type-B)*2     PDFPrecaution (PDF 548 KB)
HVW-03C : RS-232C interface (D-Sub 9P)
HVW-04C : Comparator relay output/buzzer/contact input interface     PDFManual (PDF 167 KB)
HVW-11C : Wall-mount bracket
HVW-27C : Bluetooth® communication interface     PDFManual (PDF 567 KB)

*2 Driver software needs to be installed on the PC. Please download it from here.
