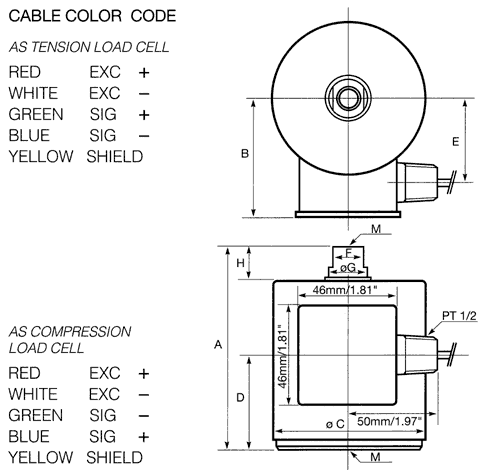

LC-1216(Tool Steel)
| Capacity | A | B | øC |
D | E | F | øG |
H | M×P×Depth |
| LC1216-K100 | 104/4.09" | 62/2.44" | 77/3.03" | 50/1.97" | 45/1.77" | 16/0.63" | 19/0.75" | 16/0.63" | M6×1/0.04"×9/0.35"" |
| LC1216-K120/K500 | 104/4.09" | 62/2.44" | 77/3.03" | 50/1.97" | 45/1.77" | 16/0.63" | 19/0.75" | 16/0.63" | M12×1.75/0.07"×10/0.39" |
| LC1216-T001A | 150/5.90" | 80/3.15" | 102/4.02" | 75/2.95" | 63/2.48" | 27/1.06" | 31/1.22" | 20/0.79" | M18×1.5/0.06"×13/0.51" |
