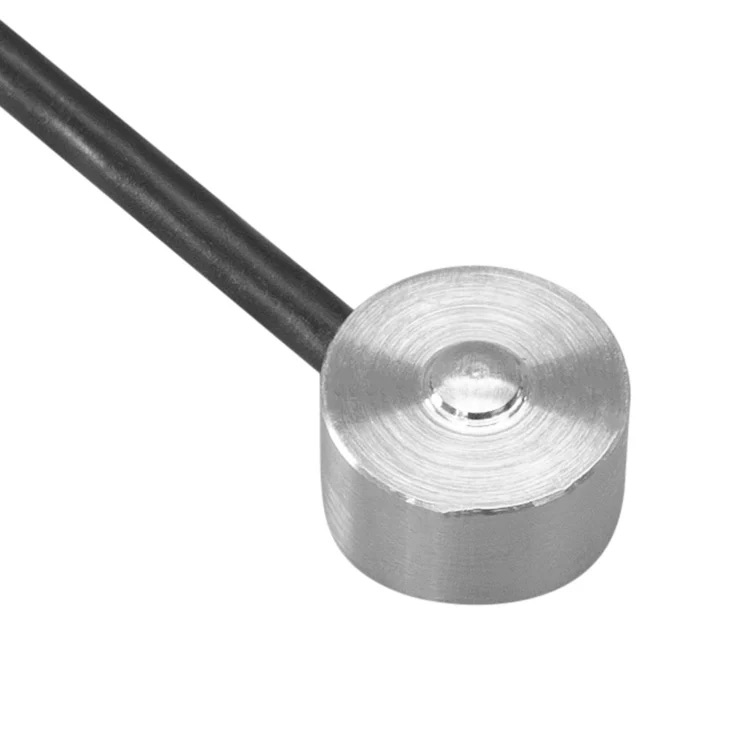

LCC28

Miniature Compression Button Load Cell

	This item is made to order
	Brochure (PDF 289KB) Drawings (PDF 78 KB) CAD File (DXF)
	Download 3D CAD

Features

Diameter: 7 mm

Height: 4.5 mm

Rated Capacity: 50 N to 500 N

Ideal for: Installation in restricted spaces due to its compact size

Typical applications:
• Button switch pressure measurement
• Keyboard inspection
• Tablet press pressure measurement
• Press machine pressure measurement
• Spring pressure measurement
• Force sensor for robots
• Load sensor for robots
• Force measurement for fitness equipment

Specifications

Model	LCC28N050	LCC28N100	LCC28N200	LCC28N500
Rated capacity (R.C.)	50 N (5.099 kg)	100 N (10.20 kg)	200 N (20.39 kg)	500 N (50.99 kg)
Deflection amount	0.01 mm
Natural frequency	80 kHz	100 kHz	116 kHz	115 kHz
Rated output (R.O.)	0.25 mV/V ±30 %			0.5 mV/V ±30 %
Non-linearity	0.5 % of R.O.
Hysteresis	0.5 % of R.O.
Repeatability	0.5 % of R.O.
Recommended excitation voltage	5 VDC
Zero balance	±20 % of R.O.
Input terminal resistance	Approx. 700 Ω
Output terminal resistance	Approx. 350 Ω
Insulation resistance	Greater than 1000 MΩ at 50 VDC (B/E)
Temperature effect on zero point	±1 % of R.O. / 10 °C
Temperature effect on span	±1 % of Load / 10 °C
Temperature compensation range	5 °C to 50 °C
Allowable temperature range	-10 °C to 80 °C
Safe overload	120% of R.C.
Cable	φ1.6 mm, 4-core shielded cable / 0.5 m
Material	Beryllium copper	Stainless steel
Weight	Approx. 2 g
