LCC32

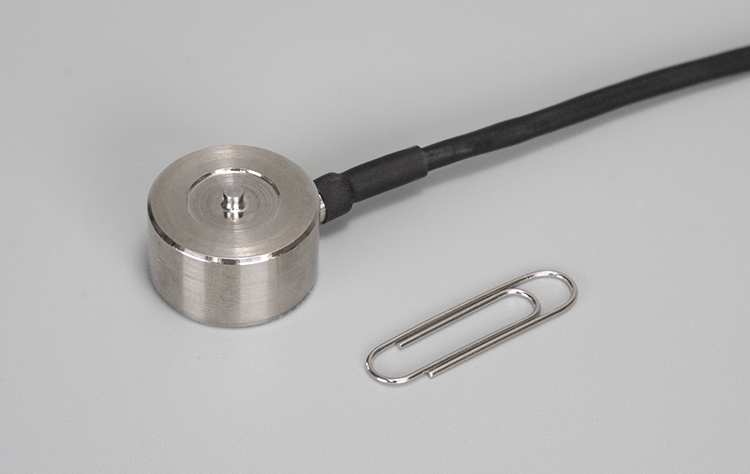

Miniature Compression Button Load Cell

Small and Lightweight Compression Load Cell
for Force Measurement

Brochure (PDF 240 KB)

Manual (PDF 483 KB)

Drawing

CAD File (DXF)

Features

Diameter: 20 mm
Height: 13 mm
Rated capacity: 200 N to 5 kN
Ideal for: Installation in restricted spaces due to its compact size
Typical applications:
・Pressure Control of Resistance Welding Machines
・Button switch pressure measurement
・Keyboard inspection
・Tablet press pressure measurement
・Press machine pressure measurement
・Spring pressure measurement
・Force sensor for robots
・Load sensor for robots
・Force measurement for fitness equipment

Specifications

Model	LCC32-N200	LCC32-N500	LCC32-KN002	LCC32-KN005
Rated capacity (R.C.)	200 N (20.39 kg)	500 N (50.99 kg)	2 kN (203.9 kg)	5 kN(509.9 kg)
Deflection amount	0.01 mm		0.02 mm	0.03 mm
Natural frequency	44 kHz		48 kHz
Rated output (R.O.)	1 mV/V ±20 %
Safe overload	150 % R.C.
Combined error	0.5% R.O.
Non-linearity	0.3 % R.O.
Hysteresis	0.3 % R.O.
Repeatability	0.2 % R.O.
Zero balance	±10 % R.O.
Temperature compensation range	0 °C to 50 °C
Allowable temperature range	-10 °C to 60 °C
Recommended excitation voltage	5 to 12 VDC
Maximum excitation voltage	15 VDC
Input terminal resistance	1 kΩ ± 0.1 kΩ
Output terminal resistance	1 kΩ ± 0.01 kΩ
Insulation resistance	Greater than 500 MΩ at 50 VDC
Temperature effect on zero point	0.1 % R.O. / 10 °C
Temperature effect on span	0.1 % Load / 10 °C Typ.
Cable	φ3, length 0.3 m
Material	Stainless steel
Weight	Approx. 23 g
