LCT31

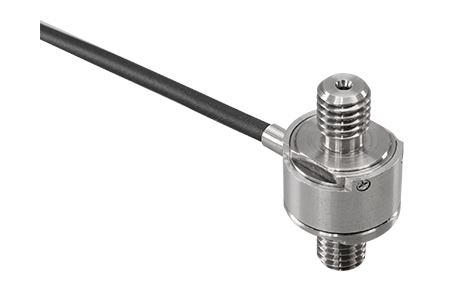

Miniature Threaded Tension and Compression Load Cell

	This item is made to order
	Brochure (PDF 274 KB) Drawings (PDF 134 KB) CAD File (DXF)
	Download 3D CAD

Features

Thread Size:M8

Outer Diameter: φ18 mm

Weight: Approximately 25 g

Rated Capacity: 5 kN to 10 kN

Equipped with male threads on both ends for easy installation onto existing equipment

Ideal for: Installation in restricted spaces due to its compact size

Typical applications:
• Inline load management
• Tension measurement
• Material fatigue testing

Specifications

Model	LCT31KN005	LCT31KN010
Rated capacity (R.C.)	5 kN (509.9 kg)	10 kN (1020 kg)
Deflection amount	Less than 0.08 mm
Natural frequency	16 kHz
Rated output (R.O.)	0.75 mV/V ±10 %	1.5 mV/V ±10 %
Non-linearity	0.5 % of R.O.
Hysteresis	0.5 % of R.O.
Repeatability	0.5 % of R.O.
Recommended excitation voltage	5 VDC
Maximum excitation voltage	10 VDC
Zero balance	±10 % of R.O.
Input terminal resistance	Approx. 850 Ω
Output terminal resistance	Approx. 850 Ω
Insulation resistance	Greater than 1000 MΩ at 50 VDC (B/E)
Temperature effect on zero point	±0.5 % of R.O. / 10 °C
Temperature effect on span	±0.5 % of Load / 10 °C
Temperature compensation range	-10 °C to 60 °C
Allowable temperature range	-20 °C to 70 °C
Safe overload	150% of R.C.
Cable	φ3 mm, 4-core shielded cable / 3 m
Material	Stainless steel
Weight	Approx. 25 g
