IP69K Super Washdown Scales

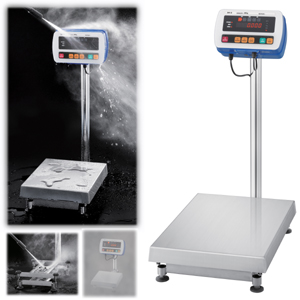

SW Series Super Washdown Scales Maximum Resistance to Hostile Environments!


PDFBrochure (PDF 561KB)
PDFSW Manual (PDF 1.9MB)
PDFSW-D Manual (PDF 571KB)
interviews and testimonials
MOVIEBroadband network 1.0Mbps or faster (To download, right-click here)
MOVIEBroadband network 0.5Mbps or faster (To download, right-click here)

IP69K IP68 External Calibration LED Display Counting Function Comparator Function Auto Power OFF EC Type Approval Software
Optional
RS-232C Interface Rechargeable Battery NSF Compliant

Features
Ultimate protection against the effects of condensation as well as water – both IP69K and IP68 compliant
Streamlined construction for easy cleaning of food-processing residues
Stainless steel weighing pan, frame and load cell*
Rugged and adjustable (0º, 30º, 60º or 90º) indicator bracket
Touch sensitive capacitive keys to prevent damage from sharp objects
Auto-tare function to facilitate consecutive check weighing
Counting mode function
Bright, multicolored LED display with 5-step comparator lamps
Auto power off function
Three sizes of base units, which are also available separately
Pole stand attachable to either the short or long side of the platform
The display unit available separetely as an IP69K indicator for high pressure washdown

 * Weighing pan = SUS304
    Frame = SUS304
    Load cell = SUS630
SW-D IP69K Indicator for High Pressure Washdown SW-D
External Input / Output
RS-232C + comparator relay output (optional)
RS-422/485 interface (optional)
Options
HC-02i : Sealed lead acid rechargeable battery (6 V, 4 Ah)
SW-03 : RS-232C + comparator relay output
SW-04 : RS-422/485 interface
SW-09 : Short pole stand (for SW-6KS/15KS only)
SW-10 : Long pole stand
SW-11 : Desktop/wall-mount stand

** SW-03 and SW-04 cannot be used at the same time.
*** SW series is not IP69K compliant with SW-03 or SW-04.
Specifications
Model Capacity Resolution Pan Size (mm)
W x D
SW-6KS 6 kg 0.002 / 0.001 / 0.0005 kg 250 x 250
SW-15KS 15 kg 0.005 / 0.002 / 0.001 kg
SW-15KM 15 kg 0.005 / 0.002 / 0.001 kg 300 x 380
SW-30KM 30 kg 0.01 / 0.005 / 0.002 kg
SW-60KM 60 kg 0.02 / 0.01 / 0.005 kg
SW-150KM 150 kg 0.05 / 0.02 / 0.01 kg
SW-60KL 60 kg 0.02 / 0.01 / 0.005 kg 390 x 530
SW-150KL 150 kg 0.05 / 0.02 / 0.01 kg
**** g, oz, lb and lb-oz also available (g not available for SW-60K/150K)
Model Capacity Pan Size (mm)
W x D
Mass (approximate)
SB-6K13SW 6 kg 250 x 250 3.7 kg
SB-15K13SW 15 kg
SB-15K14SW 15 kg 300 x 380 8.2 kg
SB-30K14SW 30 kg
SB-60K14SW 60 kg
SB-150K14SW 150 kg
SB-60K15SW 60 kg 390 x 530 11.2 kg
SB-150K15SW 150 kg
Specifications (SW-D)
Input sensitivity 0.2 µV / d (d: minimum division)
Input signal range −16 mV to 16 mV
Load cell excitation voltage DC 5V ± 5% (no remote sensing)
Load cell drive capacity Up to four 350 Ω load cells
Temperature coefficient Zero: ±(0.2 µV ± 0.001% of zero adjustment voltage) / °C (typ.)
Span: ±0.001% / °C of reading (typ.)
Linearity ±0.01% of full scale
Maximum display resolution 60000
