AD-3256

Dual Type Coating Thickness Gauge


	Brochure Manual

Highlights

Automatically detects and measures ferrous and nonferrous substrates

500 measurement data automatically stored in the device

Transfer measurement data to PC via PC software "AD-3256 Logger"

3-color LED lamp for thickness judgment

Zero-point calibration using one or two points

Automatic display rotation (90°, 180°, 270°) according to the device's orientation
* Can also be locked in portrait orientation

Judgment mode: Determines whether the measured object is within the reference thickness based on the set reference value and tolerance (±〇 μm)

Average, minimum, and maximum values are calculated from data stored in the device and displayed on screen

Features

AD-3256 Product Introduction	Measurement Process

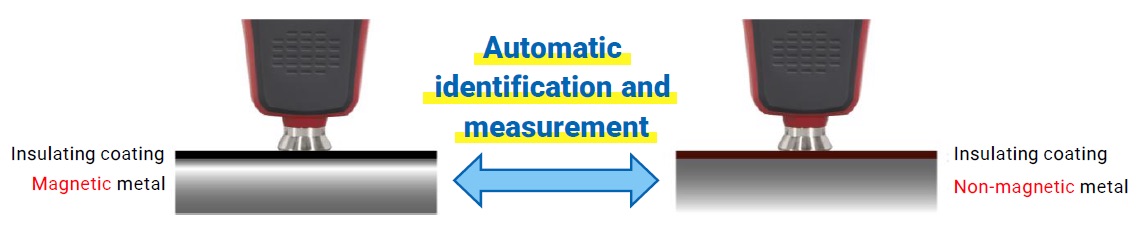

For both ferrous and non-ferrous substrates

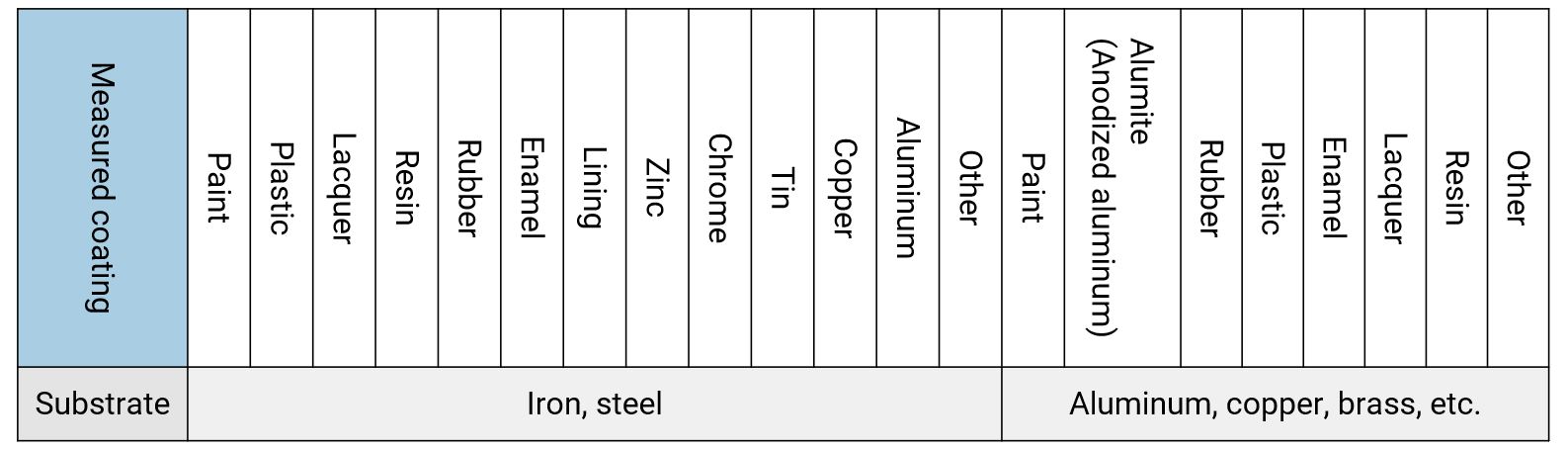

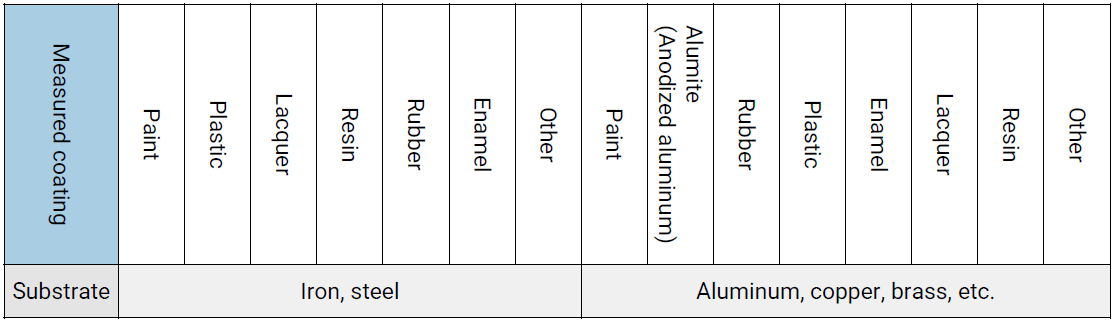

Automatically identifies ferrous and non-ferrous substrates. No special operation required; simply press the sensor against the object to measure the thickness of the coating. Refer to the table below for combinations of coatings and substrates that can be measured.

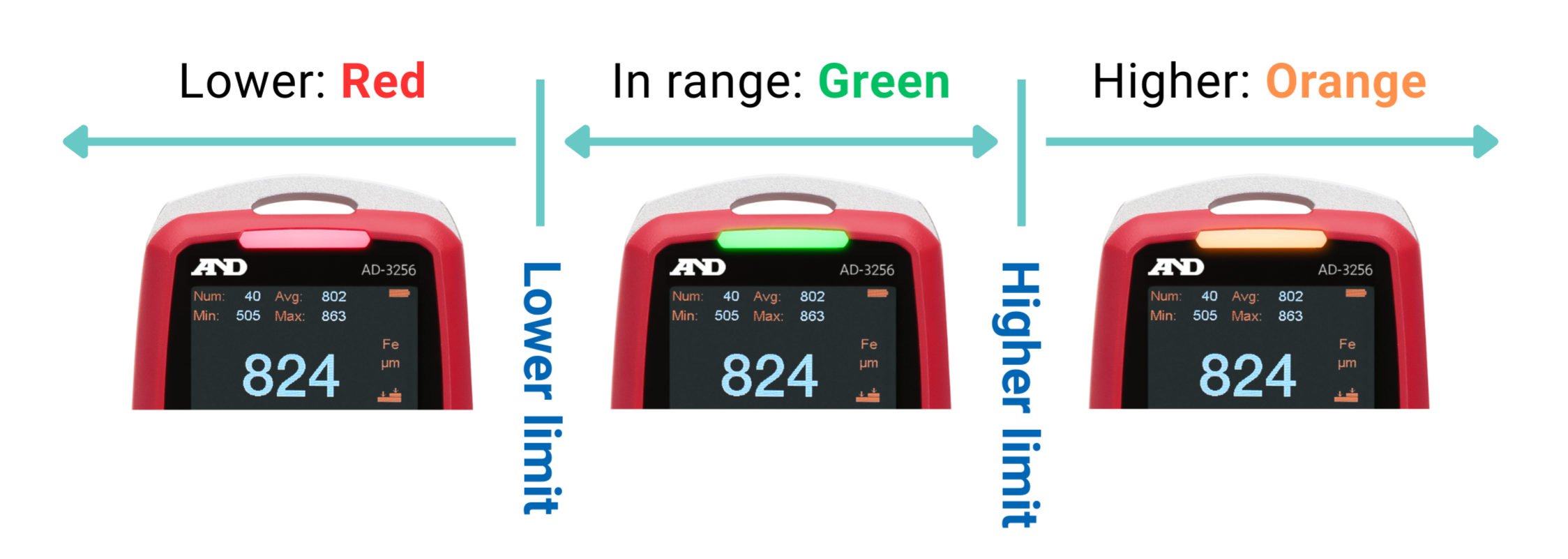

3-color LED lamp for thickness judgment

By setting a higher and lower limit, pass or fail can be judged by the color of the LED lamp. The lamp lights orange when the measured value is above the higher limit, red when it is below the lower limit, and green when it is within the higher and lower limits. * The LED lamp can also be turned off.

PC software “AD-3256 Logger”	Zero-point calibration using one or two points

	Zero-calibration plate and adjustment test piece are standard accessories.

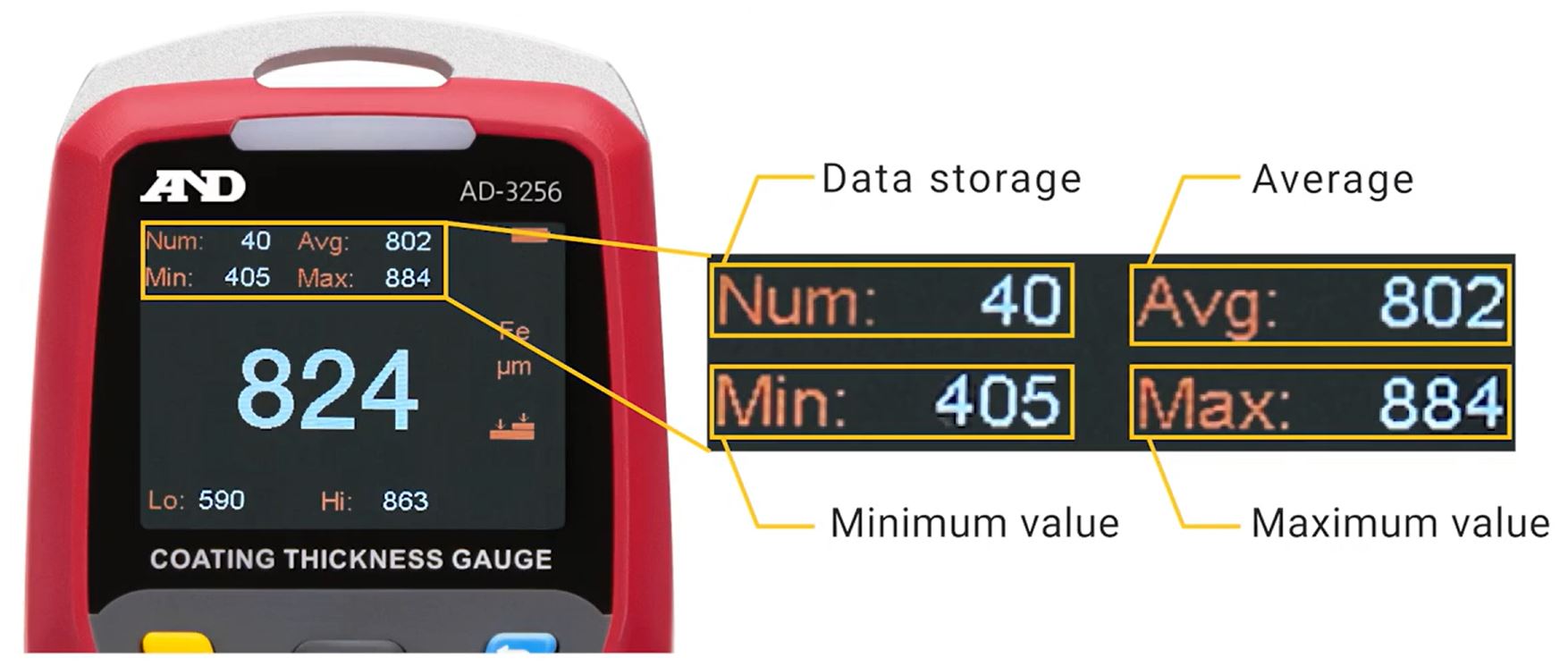

Automatic display rotation (90°, 180°, 270°) according to the device's orientation	Average, minimum, and maximum values are calculated from data stored in the device and displayed on screen

* Can also be locked in portrait orientation
