AD-3255

Ultrasonic Thickness Gage


	Brochure Instruction Manual

Features

Measures the thickness of a variety of materials such as metal, glass, plastic, ceramic and epoxy

Measures Wide measurement range from 0.8 to 300mm

0.01 mm display resolution (display can switch between 0.01/0.1mm)

Equipped with scan mode for measuring minimum thickness range

Three types of probes can be used to suit your needs
   AD-3255-02(Standard probe) Measurement range from 0.8 to 200.0mm
   AD-3255-03(Option ) Measurement range from 1.0 to 300.0mm
   AD-3255-04(Option ) Measurement range from 2.0 to 300.0mm

Comes with 4 mm equivalent test piece for Zero point calibration for probe.

The thickness of an object excluding paints and coatings can be measured with Echo-echo mode using AD-3255-04 probe.
(Measurement range from 4.0～30.0mm)

Sound velocity calibration is possible
(Single point and two-point calibration as well as numerical input calibration are possible, configuration and calibration data are recorded)

Coupling status displayed for contact status confirmation

Backlight for use in dark environments

Standard Accessories

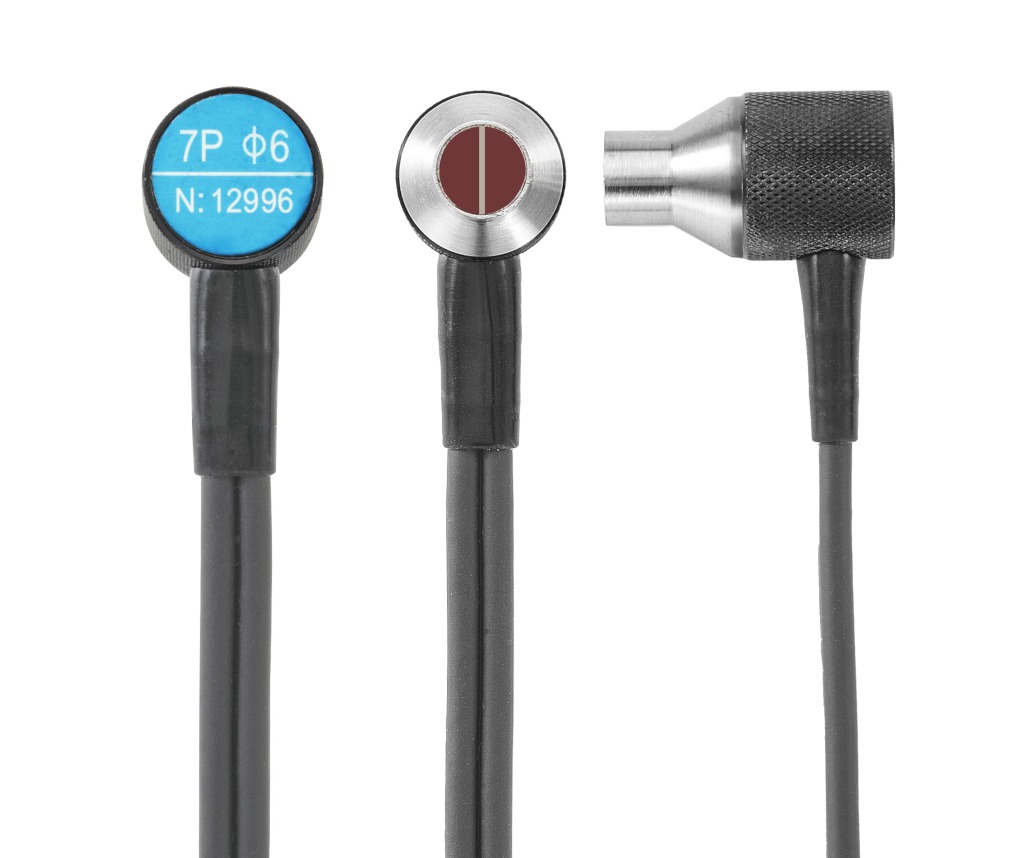

AD-3255-01 4.00mm test piece with Strap	AD-3255-02 7MHz probe Measurement range from 0.8 to 200.0mm

Options

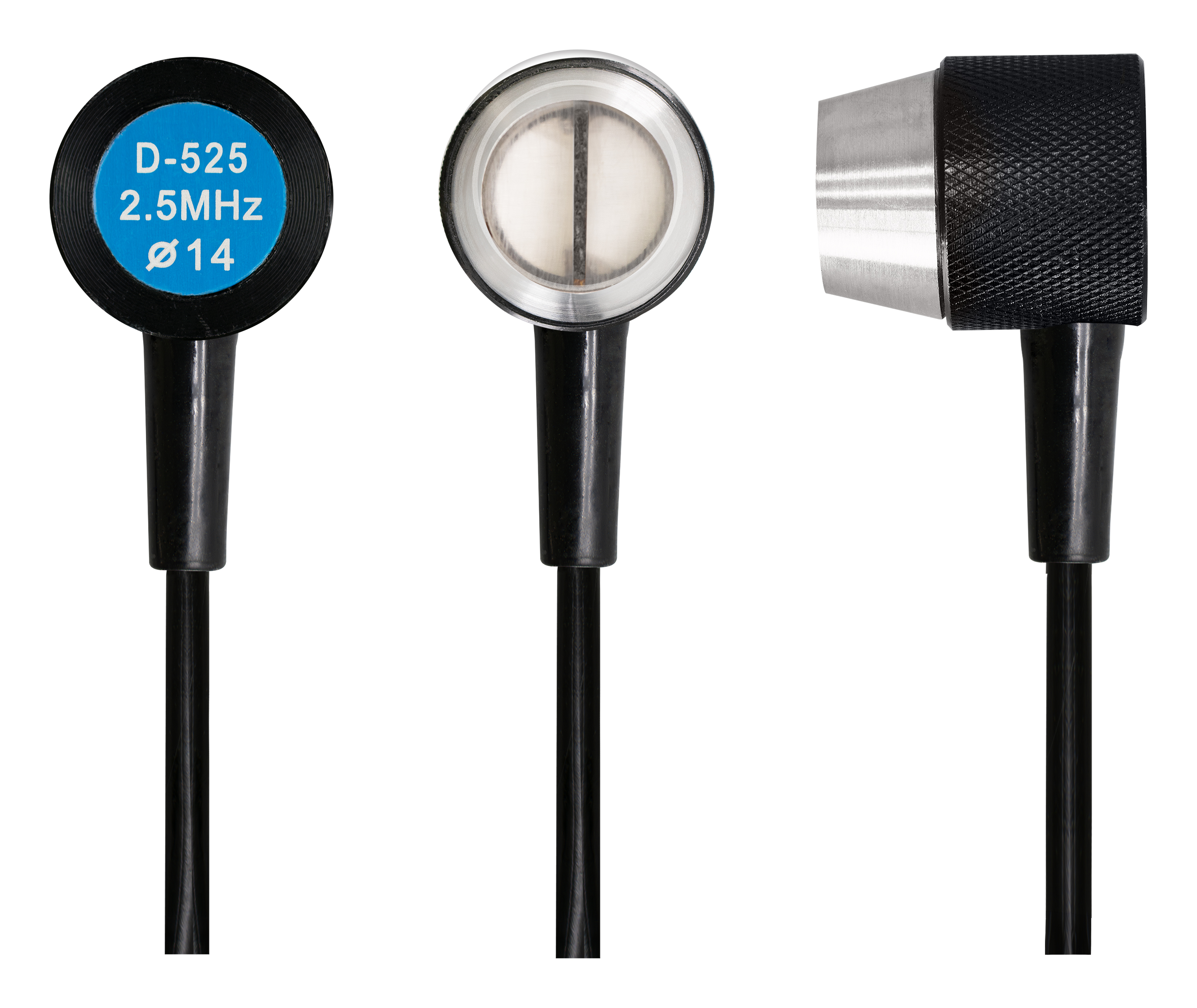

AD-3255-03 5MHz probe Measurement range from 1.0 to 300.0mm	AD-3255-04 5MHz probe Measurement range from 2.0 to 300.0mm

Measurement Principle of Ultrasonic Thickness Gauge (Sound Velocity Adjustment)	The measurement method of an ultrasonic thickness gauge.

In an ultrasonic thickness gauge, ultrasonic waves emitted from a sensor called a probe are reflected on the opposite side of the object to be... Read More >>	In ultrasonic thickness measurement, there are five representative measurement methods... Read More >>
