RTC TENSILON
Universal Tensile Testing Instruments |
|
| |
|
 |
|
RTC

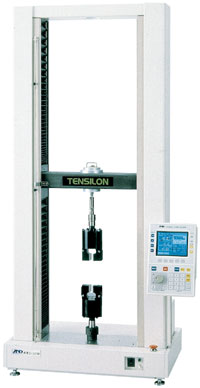

The RTC Series, TENSILON Universal Tensile Testing Machine, is the culmination of years of experience by one of the world's leading manufacturers of force measuring instruments. The RTC TENSILON is designed for a wide range of applications, including bending, compression, tensile testing and peeling.The RTC TENSILON also provides one of the most advanced software packages in the industry.
Features
Runs under Windows and displays control, test parameters and test results on screen Displays 20 screens, each with the following information, on an IBM compatible PC, allowing the operator to review data acquired during multiple tests with varied test parameters display, overprint and store S-S curves for multiple tests.Test results can be outputted in any format, in any engineering unit. Incorporates a wide variety of analytical tools.
|
|
| |
|
|
Options
- Parallel Jaws
- Fixed Wedge Jaws
- Air Jaws
- Compression Test Jig
- Compression Cage
- Compression-type Bending Test Jig
- 90° Peeling Test Jig
- Strain Gauge type Measuring Device for Distance between Gauge Marks SG Series
- Non-contact type Elongation Indicator between Gauge Marks U-4410
- Constant Temperature Testing Device
specification
| |
RTC-1350A |
RTC-1325A |
RTC-1310A |
RTC-1250A |
RTC-1225A |
RTC-1210A |
RTC-1150A |
| Loading System |
Closed-loop micro-computer controlled digital servo mechanism |
| Max Capacity |
50kN(5tf) |
25kN(2.5tf) |
10kN(1tf) |
5kN(500kgf) |
2.5kN(250kgf) |
1kN(100kgf) |
500N(50kgf) |
| Test Width |
590 |
420 |
300 |
| Crosshead Stroke |
990 |
1,100 |
612 |
| Effective Stroke1 |
608 |
580 |
690 |
665 |
775 |
265 |
| Crosshead Speed2 |
0.05 to 1,000 (18 speeds)3 |
0.05 to 500 (17 speeds) |
| Crosshead Random Speed |
Set with 0.01mm/min. pitch. Up to 6 settings can be stored into memory |
| Speed Accuracy4 |
±0.2% |
| Crosshead Return Speed |
500, 1,000 |
100, 500 |
| Manual Crosshead Traverse Button |
Position the crosshead first using "UP" and "DOWN" switches
and use manual button to adjust fine positioning |
| Moving Crosshead Positioning Display |
5 digit display (resolution: 0.01) |
| Elongation display w/ Extenso-meter |
5 digit unit display: mm, %GL, %FS |
| Load Display |
5 digit display with decimal point and peak holding function.
Unit: gf, kgf, N, gf/mm2, kgf/mm2, N/mm2 |
| Tensile Load Measurement Accuracy5 |
±1% of indicated value or 0.2% of FS |
| Load Range |
1,2,4,10,20,40,100% provided with auto-ranging function
(7 steps) |
| Load Calibration |
auto-zeroing/auto-spanning/load cell discrimination |
| Safety Function for Over-loading |
Provided |
| Sample Break Detection |
Provided |
| Stroke Limiter |
Upper/Lower 2 points |
| Cycle Test |
Upper/lower limit points: select from crosshead position/load.
temporal holding time is provided. |
Notes |
1 Effective tensile strokes are those given with standard load cells and jaws
2 0.05, 0.1, 0.2, 0.3, 0.5, 1, 2, 3.5, 10, 20, 30, 50, 100, 200, 300, 500, 1000mm/min.
3 Maximum speed is 1000mm/min. up to 10kN; 100mm/min. over 10kN
4 Accuracyis assured when in normal operation
5 at 2 - 100% of Load Range |
| ITEM |
RTC-2430A |
RTC-2425A |
RTC-2410A |
| Max Capacity |
300kN (30tf) |
250kN (25tf) |
100kN (10tf) |
| Test Width(mm) |
590 |
590 |
590 |
| Crosshead Stroke(mm) |
1370 |
1370 |
1260 |
| Effective Stroke(mm) |
625 |
625 |
620 |
| Crosshaed Speed(mm/min) |
0.005-500 (21 speeds) |
0.005-500 (21 speeds) |
0.05-1000(18speeds) |
| Crosshead Random Speed |
same as current description |
|
| Speed Accuracy |
same as current description |
|
| Crosshead Return Speed |
500, 100, 50, 10 |
|
1000, 500 |
| Manual Crosshead Traverse Button |
the rest is same as current description |
|
| STANDARD LOAD CELLS AND JAWS |
| Load Cell (SI unit) |
UF-300KN-D |
UF-250KN-D |
UF-100KN-D |
| Load Cell (Gravitational unit) |
UF-30-D |
UF-25-D |
UF-10-D |
| Jaws and Double-cut faces |
OJ-BJM-300KN |
OJ-BJM-300KN |
OJ-BJM-100KN |
|
OJ-FBMD1-300KN |
OJ-FBMD1-300KN |
OJ-FBMD1-100KN |
| GENERAL |
| Approx. Dimensions Loading Unit |
1200(W) x 2470(H) x 750(D) |
1000(W) x 2305(H) x 600(D) |
| Approx. Dimensions Measure/control unit |
192(W) x 288(H) x 80(D) |
|
| Approx. Weight Loading Unit |
1300kg |
1300kg |
785kg |
| Approx. Weight Measure/control Unit |
2.6kg |
|
|
| Power Requirements |
AC200V3_, 50/60Hz, No plug |
AC100V1_, 50/60Hz |
| Approx. VA |
4200VA |
2200VA |
350VA |
|
|
|
|
|
|
|
|
|
|
