MPA Series Single Channel Electronic Pipettes
Outperforming Manual Pipettes with Comfort, Ease & Accuracy!

Development Stories (25 / 26 / 28 / 29 / 31 / 33)
PDFBrochure (PDF 5.5MB)
PDFManual (PDF 1.55MB)
 When using the MPA series
 When using a pipette that has not been used for a couple of hours we
 recommend aspirating and dispensing it prior to subsequent use. This
 will ensure smooth piston movement allowing for more precise
 dispensing.
PDFQuick operation guide (PDF 284KB)
PDFSupplementary manual for advanced functions (PDF 263KB)
PDFList of compatible tips (PDF 40KB)
MOVIEDemonstration Videos (YouTube)
interviews and testimonials
 Pipette Operation Guide ~ for accurate dispensing with pipettes ~
 How can you dispense viscous or volatile samples more accurately?
 This document explains why such samples often lead to errors and
 effective countermeasures you can take for them. It also summarizes
 the MPA Series' resistance to organic solvents, etc.
PDFPipette Operation Guide Rev.3 (PDF 670KB)
Features
Accuracy/repeatability not dependent on human factors
Stress-minimized, pain-free operation using the forefinger
Easy calibration (adjustment) with the User CAL function*1*2
Calibration and display by either volume (µL/mL) or weight (mg)*1
Accurate pipetting possible with other manufacturers' tips (List of compatible tips (PDF 40KB))
Dedicated glass tips and silicon adapters available
Multiple dispensing (MD) mode with automatic initial volume correction (pre-dispensing)
Mixing (MIX) mode for homogenizing solutions
Reverse operation for accurately dispensing viscous samples
Increased resistance to drop impacts with padding on the head*1
Aspirating and dispensing speeds adjustable to 5 different levels each
Storage for up to 9 programs
High resistance to acid/organic solvents
Quickly detachable, autoclavable lower part (121 deg C, 2 atm, 20 minutes)
Adjustable tip ejector reach
Extended finger hook
Power supply by either a rechargeable battery or switching (100-240V) AC adapter
Multiple AC adapter plugs (A, BF, C, S)
Auto power OFF function

*1 Patented
*2 For verification of dispensed volumes necessary for calibration, the AD-4212B-PT/ AD-4212A-PT/ FX-300iPT pipette accuracy testers (or BM series + BM-014) are useful tools

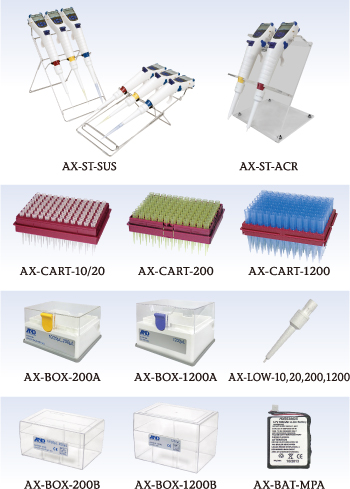

Accessories
AX-GL-200/1200 : 10 glass tips + 2 silicon adapters (gray) for the MPA-200/1200
AX-GL-10ML : 10 glass tips + 2 silicon adapters (blue) for the MPA-10000

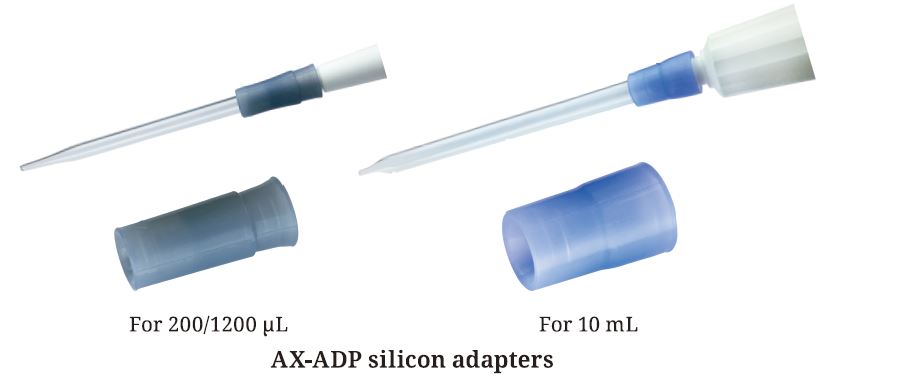

AX-ADP-200/1200 : 10 silicon adapters (gray) for the MPA-200/1200
AX-ADP-10ML : 10 silicon adapters (blue) for the MPA-10000
Charging hanger Charging hanger
AX-BOX-200A : Tip box for the MPA-10/20/200*3
AX-BOX-1200A : Tip box for the MPA-1200*3
AX-BOX-200B : Tip box (no latch) for the MPA-10/20/200*3
AX-BOX-1200B : Tip box (no latch) for the MPA-1200*3
AX-CART-10/20 : Tip cartridge (96 sterile tips × 10 sets) for the MPA-10/20
AX-CART-200 : Tip cartridge (96 sterile tips × 10 sets) for the MPA-200
AX-CART-1200 : Tip cartridge (96 sterile tips × 10 sets) for the MPA-1200
AX-BULK-10ML-B : Bagged tips (200 tips × 1 bag) for the MPA-10000
AX-BOXT-10ML-B : Racked tips (25 tips × 1 rack) for the MPA-10000
AX-BOXT-10ML-BS : Racked sterile tips (25 sterile tips × 1 rack) for the MPA-10000
Charging hanger
AX-LOW-10 : Lower part of the MPA-10
AX-LOW-20 : Lower part of the MPA-20
AX-LOW-200 : Lower part of the MPA-200
AX-LOW-1200 : Lower part of the MPA-1200
AX-LOW-10000 : Lower part of the MPA-10000
AX-FILTER-10ML : Filter for the MPA-10000 (100 pcs)
Charging hanger
AX-HA-STD : Pipette hanger
AX-ST-SUS : Stainless steel stand for up to three MPAs
AX-ST-ACR : Acrylic stand for up to two MPAs
Charging hanger
AX-HA-CHG : Charging hanger
AX-ST-CH-A1 : Charging stand for single pipette
AX-ST-CH-M4 : Charging stand for four pipettes
Charging hanger
AX-BAT-MPA : Lithimum-ion rechargeable battery
AX-KO4730-10 : Linking cable (10 cm, for connection between charging hangers/stands)
AX-TB283 : AC adapter (A, BF, C and S plugs are included)*4
AX-PAD-MPA : Pipette elbow cushion (NBR & polyurethane, 4 sheets × 1 set)
AX-HOLDER-SET : Sample cup holder set (Silicon rubber with anti-static treatment, large/medium/small × 1 set)
Charging hanger
*3 Tips are not included.
*4 AX-TB282 for the US

Demonstration Videos - Introducing Various Functions of the MPA Series

Clip 1: Standard (AUTO) mode

Clip 2: Reverse operation

Clip 3: Multiple Dispensing (MD) mode

Clip 4: Mixing (MIX) mode

Clip 5: Dispensing and mixing (AUTO + MIX) mode

Clip 6: Sequential Aspirating (SA) mode

Clip 7: Sequential Dispensing (Sd) mode

Full version: All functions

Specifications
Model MPA-10 MPA-20 MPA-200
Capacity range 0.3 to 10.0 µL 0.3 to 20.0 µL 3.0 to 200 µL
Increment 0.1 µL 1 µL
Performance*5*6 Volume 1.0 µL 5.0 µL 10.0 µL 2.0 µL 10.0 µL 20.0 µL 10 µL 100 µL 200 µL
Accuracy (±) 4.0% 2.0% 1.0% 4.0% 2.0% 1.0% 2.5% 1.2% 0.6%
Repeatability (CV) 2.5% 0.8% 0.4% 2.5% 0.8% 0.4% 1.0% 0.3% 0.15%
Maximum number of multiple dispensings 0.3 µL × 33 times 0.3 µL × 66 times 3 µL × 66 times
Program memory 9 programs
Aspirating/dispensing speed 5 speeds
Length Approx. 280 mm
Weight (including the battery) Approx. 150 g Approx. 160 g

Model MPA-1200 MPA-10000
Capacity range 15 to 1200 µL 0.1 to 10.0 mL
Increment 1 µL 0.1 mL
Performance*5 Volume 100 µL 600 µL 1200 µL 1.0 mL 5.0 mL 10.0 mL
Accuracy (±) 2.5% 1.0% 0.5% 2.5% 1.0% 0.5%
Repeatability (CV) 0.6% 0.3% 0.15% 0.6% 0.15% 0.15%
Maximum number of multiple dispensings 15 µL × 80 times 0.1 mL × 99 times
Program memory 9 programs
Aspirating/dispensing speed 5 speeds
Length Approx. 280 mm
Weight (including the battery) Approx. 170 g Approx. 190 g
*5 In standard (AUTO) mode with maximum aspirating and dispensing speeds
For daily and periodic checks of the MPA series, the AD-1690 leak tester and AD-4212B-PT/AD-4212A-PT/FX-300iPT pipette accuracy testers (or BM series + BM-014) are useful tools.
