Product

Weighing

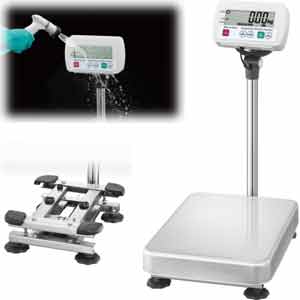

SC Series
IP68 Washdown Scales
SC series Premium resistance to hostile environments!


PDFBrochure (PDF 1,195KB)
PDFManual (PDF 1,394KB)
interviews and testimonials



IP68 External Calibration LCD Display Counting Function Comparator Function Auto Power OFF Normal Battery EC Type Approval Software
Optional
Quick USB RS-232C Interface

Features
Submersible IP68 compliant and fit for extremely wet work environments
Washdown construction for easy cleaning
5,000 hours of continuous operation with 6 D alkaline batteries
High-speed weighing with 1-second stabilization
Supersized LCD display with 39 mm character height
Stainless steel (SUS304) frame and weighing pan
Waterproof and corrosion-resistant load cell*
Easily removable battery unit
Counting mode function
Comparator function
Auto power off function
Battery life indicator

* Aluminum anodized and coated with epoxy resin with protective silicon over wiring
External Input/Output
Quick USB interface (optional)
RS-232C + comparator relay output (optional)
Options
SCE-02 : Quick USB interface
SCE-03 : RS-232C + comparator relay output

** SCE-02 and SCE-03 cannot be used at the same time.
*** SC series is not IP68 compliant with SCE-02 or SCE-03.
Specifications
Model SC-30KAM SC-60KAM SC-150KAM SC-60KAL SC-150KAL
Weighing capacity 30 kg 60 kg 150 kg 60 kg 150 kg
Minimum weighing value 0.01 kg 0.02 kg 0.05 kg 0.02 kg 0.05 kg
0.005 kg 0.01 kg 0.02 kg 0.01 kg 0.02 kg
Weighing pan 300 mm × 380 mm 390 mm × 530 mm
**** oz and lb also available
