BH-T/BH Series
Premium-Level Semi-Micro/Analytical Balances

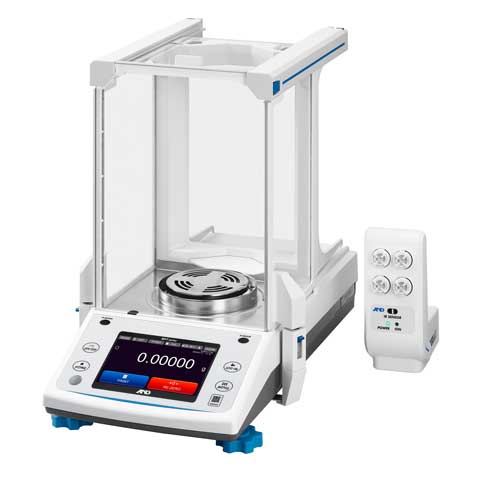

BH Series Premium-Level Semi-Micro/Analytical Balances
Superior Weighing, Without Compromise
PDFBrochure(PDF 7.7MB)
PDFManual for BH-T series(PDF 20.5MB)
PDFManual for BH series(PDF 10.5MB)
PDFQuick start guide for BH-T series(PDF 12.1MB)
PDFQuick start guide for BH series(PDF 10.5MB)
For both series
Internal Calibration Quick USB RS-232C Interface User Access Control GLP Compliant Date & Time Impact Shock Detection Counting with ACAI Percentage Function Auto Power ON Auto Power OFF Underhook Universal Flexi Coms
For the BH-T series only
Touch Screen USB Host Interface Ethernet (TCP/IP) Interface Bluetooth® Interface (Currently enabled for the US, Canada and Japan only.) Statistical Calculation Static Eliminator (Optional for the BA-225/225D/125D)
For the BH series only
Reverse Backlit LCD Data Memory Function
Please send your inquiry here
Features
Automatic opening/closing of the breeze break doors using non-contact IR sensors
5-inch wide color touch screen that enables intuitive operation (for the BH-T series)
External ionizer for instant static elimination*1
Easily separable glass panes and floor plate for better cleanability
No grooves for the sliding doors so that contaminants do not accumulate
Perforated weighing pan with shock absorber that mitigates the effects of both convection flows and sample placement impact (patent pending)
Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor (patented)
AD-Just – Automatic self-sensitivity adjustment using the internal weight
Internal repeatability test to quickly assess the performance under actual operating conditions
Daily/periodic balance check support (for the BH-T series)
Smart routine check (SRC) function (for the BH-T series) (patented)
Minimum weight setting and alert functions
User access control (UAC) with user rights management and password lock functions
History information for log-in/log-out, operation, sensitivity adjustment, and impact shock detection (ISD) (for the BH-T series)
Data memory function (for the BH series)
Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
GLP/GMP/GCP/ISO compliant output to meet documentation requirements
GLP custom output mode that provides flexible GxP-compliant data output with customizable templates (for the BH-T series)
Label output mode that enables ZPL®/ZPL II® printing with customizable text/barcode templates (for the BH-T series)
Universal Flexi Coms (UFC) to customize printout content and layout*2
Gross/Net/Tare output
Formulation mode for quick, accurate weighing of multiple samples to mix (for the BH-T series)
HPLC mode for preparing buffer solutions for high-performance liquid chromatography (for the BH-T series)
Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function for target weighing or checking sample variation
Statistical calculation function (SCF) to facilitate the analysis of measurements (for the BH-T series)
Auto power ON and OFF functions
Density measurement mode
Underhook for weighing a magnetic material as well as measuring density
Multiple languages: English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Korean, Chinese, or Japanese (for the BH-T series)

*1 Optional for the BH series
*2 For editing and sending UFC setting commands, download WinCT-UFC here
Videos

Assembly Instructions | BH series

Unpacking and Repacking Procedures | BH Series

Proper Use of Breeze Break Rings | BH series
External Input/Output
RS-232C interface
Quick/bi-directional USB interface*3
External key input (jack socket) × 2
USB host interface (for the BH-T series)
Ethernet (TCP/IP) interface (for the BH-T series)
Bluetooth® interface (for the BH-T series)

*3 Users can toggle between the Quick USB mode (plug-and-play with weighing data output to a PC only) and the Virtual COM mode (for bi-directional communication) using internal settings. For the latter, a driver (available for download here) needs to be installed on the PC (except for those with Windows 10/11).
Accessories
AD-1653 : Density determination kit
AD-1671 : Anti-vibration table for balances
AD-1672/AD-1672A : Tabletop breeze break (large)
AD-1683A : External ionizer*4
AD-1684A : Electrostatic field meter
AD-1687 : Weighing environment logger
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-8129TH : Compact printer
AD-8526 : RS-232C/Ethernet (TCP/IP) converter
AX-BHT-31 : Display cover for the BH-T series (5 pcs)
AX-BH-31 : Display cover for the BH series (5 pcs)
AX-BH-PAN-01 : Weighing pan (perforated)
AX-BH-PAN-02 : Weighing pan (non-perforated)
AX-BM-NEEDLESET : Electrode unit for ionizer (4 pcs)
AX-HOLDER-SET-B : Sample cup holder set (antistatic)
AX-IR-SWITCH : External IR switch
AX-SW137-PRINT : Foot switch for PRINT (with connector)
AX-SW137-REZERO : Foot switch for RE-ZERO (with connector)

*4 Also provided as standard for the BH-T series and the 0.001 mg models of the BH series

Specifications
Model BH-225TE
BH-225		 BH-225DTE
BH-225D		 BH-124 BH-224TE
BH-224		 BH-324TE
BH-324
Capacity 220 g 51 g / 220 g*i 120 g 220 g 320 g
Readability 0.01 mg 0.01 mg / 0.1 mg*i 0.1 mg
Repeatability
(standard deviation)*ii		 0.015 mg (for 50 g)
0.03 mg (for 200 g) 		0.025 mg (for 50 g)
0.1 mg (for 200 g) 		0.09 mg 0.1 mg
Minimum weight*iii (typical) 17 mg 104 mg
Linearity ±0.10 mg ±0.2 mg
Stabilization time (typical when set to FAST) Approx. 7 secs Approx. 7 secs / 3 secs Approx. 3 secs
Weighing pan size Ø90 mm
*i Smart range function: Automatically switches between the precision and standard ranges. Changes back to full precision range when the RE-ZERO (tare) operation is implemented.
*ii Repeatability can worsen depending on the environmental conditions and operator skills.
*iii Pursuant to the United States Pharmacopeia (USP), Chapter 41
CAD BH-T CAD File (DXF)
CAD BH CAD File (DXF)
