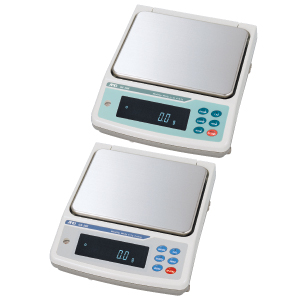

GX-K/GF-K Series
IP65 Dust & Waterproof Precision Industrial Balances
GX-K/GF-K Series Precision Industrial Balances Dust & waterproof, medium-capacity
industrial balance

PDFBrochure (PDF 753KB)
PDFManual (PDF 1.6MB)
interviews and testimonials

IP65 Super Hybrid Sensor VFD Display RS-232C Interface GLP Compliant Data Memory Function Counting with ACAI Percentage Function Animal Weighing Accumulation Function Comparator Function Auto Power ON Auto Power OFF Underhook Software
Internal Calibration
  GX-K		 Time and Date
  GX-K		 External Calibration
  GF-K		 Smart Range
GX/F-8K2/32K
Please send your inquiry here
Features
IP65 compliant, dust and waterproof
Adjustable response characteristics to help cope with the effect of drafts and vibrations (GX-K: manual or automatic / GF-K: manual only)
Automatic self calibration to maintain accuracy under temperature changes (GX-K)
Multiple weighing units: g, kg, oz, lb, lb-oz, ozt, ct, mom, dwt, grain*, specific gravity, and a user-programmable unit for conversion applications (either tael, tola or Newton can be added upon request)
High-speed weighing with 1.5-second stabilization
Large bright vacuum fluorescent display
Large weighing pan – 270 mm (W) × 210 mm (D)
GLP/GMP/GCP/ISO compliant output
Clock and calendar function (GX-K)
Data memory function
Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function
Animal weighing (hold) function
Accumulation (M+) function
Comparator function with buzzer
Auto power on/off function
Underhook function
Density determination function
Windows Communication Tools software (WinCT) on CD-ROM
Quick reference card provided

* grain not available with the GX-32K/GF-32K.
External Input/Output
RS-232C interface
Analog output (optional)
Current loop output (optional)
Comparator output with a buzzer (optional)
Options
GX-04K : Comparator output with a buzzer/RS-232C/Current loop output
GX-06K : Analog output/Current loop output
GX-07K : Waterproof RS-232C cable (25P-9P, 5 m)
GXK-012 : Animal weighing pan     PDFManual (PDF 121 KB)
GXK-015 : Carrying case

** Only one of GX-04K, GX-06K or the standard RS-232C can be used.
*** GX-K/GF-K series are not IP65 compliant with GX-04K and GX-06K.
**** Analog output is updated according to the display refresh rate. Display refresh rate can be changed in the internal settings of the balance. (approx. 5/10 times/sec)
Accessories
AD-1682 : Rechargeable battery unit
AD-1683 : Static eliminator
AD-1684A : Electrostatic fieldmeter
AD-1687 : Weighing environment logger
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-8118C : Universal printer
AD-8127 : Compact printer
AD-8526 : RS-232C/Ethernet (TCP/IP) converter
AD-8527 : Quick USB adapter
AD-8920A : Remote display
AD-8922A : Remote controller
AX-USB-25P : RS-232C/USB converter with cable
AX-KO1710-200 : RS-232C cable (25P-9P)
AX-SW128 : Foot switch
AX-GXK-31 : Breeze break for the GX-K/GF-K
Specifications
Model GX-8K
GF-8K		 GX-8K2
GF-8K2		 GX-10K
GF-10K		 GX-12K
GF-12K		 GX-20K
GF-20K		 GX-30K
GF-30K		 GX-32K
GF-32K
Capacity 8.1 kg 8.1 kg /
2.1 kg****		 10.1 kg 12 kg 21 kg 31 kg 31 kg /
6.1 kg****
Readability 0.01 g 0.1 g /
0.01 g****		 0.01 g 0.1 g 1 g /
0.1 g****
Weighing pan 270 mm × 210 mm
   **** Smart range function: The display returns to the precision range by pressing the RE-ZERO (tare) key regardless of the tare value.
