MC-A/MC-M Series
Mass Comparators

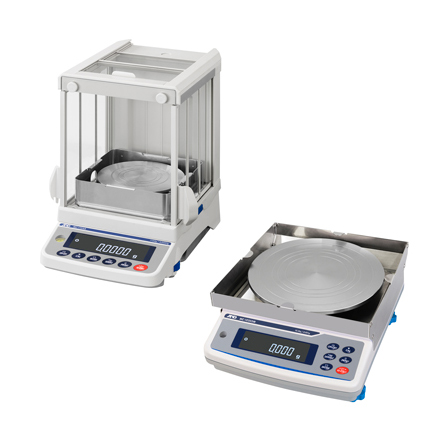

MC-A MC-M Series Mass Comparators (Precision Balances with Extended Readability) Enhanced Performance. Unchanged Value.
PDFBrochure (PDF 7 MB)
PDFManual for MC-A (PDF 9.4 MB)
PDFManual for MC-M (PDF 9.4 MB)

Internal Calibration Super Hybrid Sensor Reverse Backlit LCD Quick USB RS-232C Interface User Access Control GLP Compliant Date & Time Data Memory Function Impact Shock Detection Electronically Controlled Load Counting with ACAI Percentage Function Animal Weighing Statistical Calculation
Comparator Function Auto Power ON Auto Power OFF Underhook Universal Flexi Coms IP65
MC-M only
Optional
USB Host Interface
MC-A only		 Ethernet (TCP/IP) Interface Bluetooth® Interface Rechargeable Battery
MC-A only
Please send your inquiry here
Features
Auto-centering pans available for consistent accuracy through automatic correction of eccentricity errors
Extra decimal place enabling accurate tracking of small weight changes in automated systems with heavy tare weights
Impact Shock Detection (ISD) for reliable automation with alerts and logging of high-impact events
Cushioning under the weighing pan to mitigate impact shocks significantly
Tare memory function that saves the tare value in non-volatile memory
AD-Just – Automatic self-sensitivity adjustment using the internal weight
Minimum weight setting and alert functions
Selectable response characteristics for trading weighing speed for higher display stability or vice versa
User access control (UAC) that password-protects the balance from misuse
GLP/GMP/GCP/ISO compliant output to meet documentation requirements
Universal Flexi Coms (UFC) to customize printout content and layout*1
Gross/Net/Tare output
Data memory function to save weighing results, calibration results and unit masses to be used in counting mode in the device itself
Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
Percent mode function for target weighing or checking sample variation
Animal weighing (average & hold) function for weighing moving objects
Statistical calculation function (SCF) to facilitate the analysis of measurements
Five-level comparator function with buzzer
Auto power ON and OFF functions
Underhook for weighing a magnetic material as well as measuring density
Easy-to-adjust leveling feet with thumbwheels (MC-A)
IP65 dust and waterproof (MC-M)

*1 For editing and sending UFC setting commands, download WinCT-UFC here
External Input/Output
RS-232C interface
Quick/bi-directional USB interface*2
Comparator relay output (optional)
External key input interface (optional)
Analog (0-1/0.2-1 V) output interface (optional)
Ethernet (TCP/IP) interface (optional)
USB host interface (optional for the MC-A series)
External IR switch (optional for the MC-A series)
Bluetooth® interface (optional)
Options
For the MC-A series
  GXA-03*2 : 2nd RS-232C interface
  GXA-04*2 : Comparator relay output/buzzer/external key input interface
  GXA-06*2 : Analog (0-1/0.2-1 V) output interface
  FXi-08*2 : Ethernet (TCP/IP) interface
  GXA-09*2*3 : Built-in rechargeable battery
  GXA-10*4 : Large glass breeze break
  GXA-12 : Animal weighing pan
  GXA-17*2 : Large glass breeze break with built-in fanless ionizer and external IR switch
  GXA-23-PRINT*2 : External key input interface + AX-SW137-PRINT foot switch
  GXA-23-REZERO*2 : External key input interface + AX-SW137-REZERO foot switch
  GXA-23-PLUG*2 : External key input interface + AX-T-314A-S plug
  GXA-24A*2 : USB host interface
  GXA-25*2 : Fanless ionizer with Quick Ion® technology
  GXA-26*2 : External IR switch
  GXA-27*2 : Bluetooth® interface

  *2 Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-17, GXA-23-PRINT/REZERO/PLUG, GXA-24A, GXA-25, GXA-26, or GXA-27 can be
  installed.
  *3 Factory-installed/dealer option
  *4 Also provided as standard.
For the MC-M series
  GXM-04*5*6 : Comparator relay output/buzzer/RS-232C/external key input interface
  GXM-06*5*6 : Analog (0-1/0.2-1 V) output/RS-232C interface
  GXM-08*5*6 : Ethernet (TCP/IP) interface
  GXK-012 : Animal weighing pan
  GXM-27*5 : Bluetooth® interface

  *5 Only one of GXM-04, GXM-06, GXM-08, GXM-27, or the standard (RS-232C and USB) interfaces can be installed.
  *6 The MC-M series is not IP65 with GXM-04, GXM-06, or GXM-08.
Accessories
AD-1603*7 : Calibration masses
AD-1682 : Rechargeable battery unit
AD-1683A*8 : Static eliminator
AD-1684A : Electrostatic fieldmeter
AD-1687 : Weighing environment logger
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-8129TH : Compact printer
AD-8526 : RS-232C/Ethernet (TCP/IP) converter
AD-8541-PC : Bluetooth® dongle for PC
AD-8541-SCALE : RS-232C/Bluetooth® converter
AD-8920A : Remote display
AD-8922A : Remote controller
AX-073007197-S : Display cover for the MC-M series (5 pcs)
AX-GXA-31 : Display cover for the MC-A series (5 pcs)
AX-MC10K/30KPAN : Auto-centering pan for the MC-M series
AX-MC1104APAN : Auto-centering pan for the MC-1104A
AX-MC6203APAN : Auto-centering pan for the MC-6203A
AX-USB-9P : RS-232C/USB converter with cable

*7 Available in weights from 1 mg to 20 kg, in OIML classes E2, F1, and F2.
*8 For in-line use in automated systems, the AD-1683 (without A) is recommended.
Specifications
　　　　
Model MC-1104A MC-6203A MC-10203M MC-32002M
Capacity 1100 g 6200 g 10.2 kg 32.2 kg
Readability 0.0001 g 0.001 g 0.01 g
Repeatability (Standard deviation)* 0.00035 g 0.0035 g (over 2000 g) 0.05 g (over 20 kg)
0.0015 g (up to 2000 g) 0.015 g (up to 20 kg)
Linearity ±0.003 g ±0.03 g ±0.2 g
Weighing pan size 128 × 128 mm 165 × 165 mm 270 × 210 mm
*Under good environmental conditions using the auto-centering pan, or with consistent positioning in automated systems.
