MC Series

Mass Comparators


	For management of masses in the OIML Class F1 or below

	Development Story
	Brochure (PDF 3.9MB)
	Manual for MC-1000/6100 (PDF 1.6MB)
	Manual for MC-10K/30K (PDF 1.16MB)
	Manual for MC-100KS (PDF 1.21MB)
	Manual Addendum (PDF 54KB)
	Manual for AX-MC1000PAN/6100PAN (PDF 329KB)
	Manual for AX-MC10KPAN/30KPAN (PDF 276KB)
	Demonstration of the auto-centering pan (YouTube)
	Product Note (PDF 1.18MB) Accurate knowledge and usage to avoid trouble and maximize results

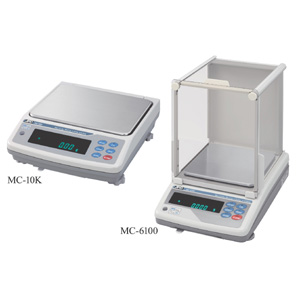

MC-10K/30K/100KS

Optional

MC-1000/6100

MC-100KS

Features

Stabilizing filter to minimize errors due to drafts or vibrations

Extra decimal place that also makes it possible to monitor fine weight changes with heavy tare weights

Auto-centering pan to avoid corner-load errors and ensure higher accuracy (option for MC-1000/6100/10K/30K)

Internal calibration mass for simplified calibration of the balance

Equipped with a glass breeze break (MC-1000/6100) or simple breeze break (MC-10K/30K) as standard

Fast stabilization of approx. 1.5 seconds

Large bright vacuum fluorescent display

GLP/GMP/GCP/ISO compliant output

Multiple weighing units: g, kg*, oz, ozt, ct, mom, dwt, grain, specific gravity, and a user-programmable unit for conversion applications (either tael or tola can be added upon request)

Data memory function

Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function

Percent mode function

Animal weighing (hold) function

Accumulation (M+) function (MC-10K/30K/100KS)

Comparator function with buzzer

Auto power on/off function

Underhook function

Density determination function

Windows Communication Tools software (WinCT) on CD-ROM

Quick reference card provided

* kg for MC-10K/30K/100KS

Videos

External Input/Output

RS-232C interface
Quick USB interface (option for MC-1000/6100)
Analog output (optional)
Comparator output with a buzzer (optional)
Current loop output(optional)

Options

For MC-1000/6100
GX-02 : Quick USB interface with cable
GX-04 : Comparator output with a buzzer/RS-232C/Current loop output
GX-06 : Analog output/Current loop output
GX-12 : Animal weighing pan
GX-13 : Density determination kit (for MC-1000 only)

1) Only one of GX-02, GX-04, GX-06 or the standard RS-232C interface can be used.
2) GX-04 and GX-06 are factory-installed options.

For MC-10K/30K
GX-04K : Comparator output with a buzzer/RS-232C/Current loop output
GX-06K : Analog output/Current loop output
GX-07K : Waterproof RS-232C cable (5 m)
GXK-012 : Animal weighing pan
GXK-015 : Carrying case

3) Only one of GX-04K, GX-06K or the standard RS-232C interface can be used. The MC-10K/30K are not IP65 compliant with these options.

For MC-100KS
GP-04 : Comparator output with a buzzer/RS-232C/Current loop output
GP-06 : Analog output/Current loop output
GP-07 : 5 m optional cable (3 m standard cable is replaced at the factory)
GP-12 : Animal weighing pan
GP-21 : Underhook
GP-22 : AD-8121B printer support

Accessories

AD-1682 : Rechargeable battery unit
AD-1683 : Static eliminator
AD-1684A : Electrostatic fieldmeter
AD-1687 : Weighing environment logger
AD-1688 : Weighing data logger
AD-1689 : Tweezers for calibration weight
AD-8118C : Universal printer
AD-8127 : Compact printer
AD-8920A : Remote display
AD-8922A : Remote controller
AD-8526 : RS-232C/Ethernet (TCP/IP) converter
AD-8527 : Quick USB adapter
AX-KO1710-200 : RS-232C cable (25P-9P, 2 m)
AX-SW128 : Foot switch
AX-USB-25P : RS-232C/USB converter with cable
AX-MC1000PAN : Auto-centering pan (MC-1000)
AX-MC6100PAN : Auto-centering pan (MC-6100)
AX-MC10K/30KPAN : Auto-centering pan (MC-10K/30K)

MC Series with auto-centering pans

Specifications

Model	MC-1000	MC-6100	MC-10K	MC-30K	MC-100KS
Capacity	1100 g	6100 g	10.1 kg	31 kg	101 kg
Readability	0.0001 g	0.001 g		0.01 g	0.1 g
Repeatability (Standard deviation)**	0.0005 g (for 1 kg) 0.0004 g (for 500 g) 0.001 g****	0.004 g (for 5 kg) 0.0015 g (for 2 kg) 0.01 g****	0.005 g (for 10 kg) 0.004 g (for 5 kg) 0.01 g****	0.015 g (for 20 kg) 0.1 g****	0.2 g (for 100 kg) 0.1 g (for 60 kg)
Linearity	±0.003 g	±0.03 g	±0.03 g	±0.2 g	±2 g
Sensitivity drift (10 °C to 30 °C)***	±2 ppm/°C			±3 ppm/°C	±6 ppm/°C
Weighing pan	128 mm × 128 mm	165 mm × 165 mm	270 mm × 210 mm		386 mm × 346 mm

** Repeatability when the auto-centering pan or an automatic loading machine is used under good ambient conditions or loading / unloading weight at the same position with an automatic loading machine.
*** When automatic self-calibration is not used.
**** When an auto-centering pan or an automatic loading machine is not used.
