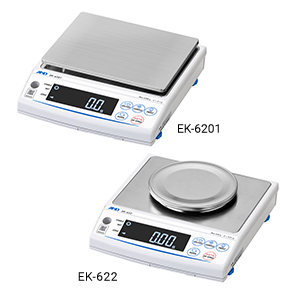

A&D Equa EK Series

Compact Balances

Affordable Weighing Made Simple & Dependable Brochure (PDF 5.4 MB) Manual (PDF 3.8 MB) Quick Start Guide (PDF 2.6 MB)

Optional

Please send your inquiry here

Features

Fast stabilization in about 0.8 seconds for efficient weighing*1 Flexible power options: AC adapter, USB Type‑C power, or AA batteries High-contrast reverse backlit LCD with large 18 mm characters Stainless steel (SUS 304) weighing pan that is durable and easy to clean Impact shock detection (ISD) warning of shocks to maintain accuracy and protect the sensor (patented) Counting mode with ACAI for more accurate piece counting Percent mode for quick comparison against a reference value Comparator function showing HI, OK, or LO for fast checkweighing Memory for up to 20 comparator limit sets for easy reuse and quick changeover Auto-tare and negative comparison for efficient “take-away” weighing Sonic communication for cable‑free data transfer to mobile devices (patented) Adjustable response characteristics to match different environments Display hold function for easy reading under unstable conditions Multiple units of measure*2: g, oz, lb, ozt, ct, mom, dwt, and gr Auto power ON/OFF to save time and reduce energy use GLP/GMP/GCP/ISO compliant output for regulated environments ZPL output for direct printing in preset formats, including one with a QR code, on Zebra printers Password lock and key restriction to prevent unauthorized changes Spirit level with LED reminder and four leveling feet for proper balance setup Security slot compatible with anti‑theft locks *1 Typical for 100 g and 1,000 g on 0.01 g and 0.1/1 g models respectively, at the fastest response setting. *2 One additional unit from either tael (Singapore, HK jewelry or Taiwan), tola or Newton can be added upon request.

External Input / Output

RS-232C interface Bi-directional USB (Type-C) interface (optional) Comparator relay output/contact input (optional) Bluetooth® interface (optional)

Options

EKW-02 : USB (Type-C) + RS-232C (D-Sub 9-pin) interface   Manual (PDF 214 KB) EKW-04 : Comparator relay output/contact input   Manual (PDF 209 KB) EKW-27 : Bluetooth® + RS-232C (D-Sub 9-pin) interface   Manual (PDF 239 KB) EKW-07i : Underhook (for EK-4201/6201/6200/12000) EJ-12 : Carrying case Note: Only one of EKW-02, EKW-04, EKW-27, or the standard (RS-232C) interface can be installed.

Accessories

AD-1683A : Static eliminator AD-1684A : Electrostatic fieldmeter AD-1687 : Weighing environment logger AD-1688 : Weighing data logger AD-8129TH : Compact thermal printer AD-8526 : RS-232C to Ethernet (TCP/IP) converter AD-8527 : Quick USB adapter AD-8541-PC : Bluetooth® dongle for PC AD-8552EIP : RS-232C to EtherNet/IP converter AD-8920A : Remote display AD-8922A : Remote controller AX-TB301 : USB power adapter (cable not included) AX-KO7215-150 : USB Type-A to Type-C cable (1.5 m)

Specifications

Model EK-122 EK-222 EK-322 EK-422 EK-622 Capacity 122 g 220 g 320 g 420 g 620 g Readability 0.01 g Repeatability (standard deviation)*i 0.01 g Linearity ±0.01 g ±0.02 g Stabilization time*ii Approx. 0.8 seconds Weighing pan size Ø116 mm External dimensions 190 (W) × 205 (D)*iii × 55 (H) mm Net weight Approx. 1.1 kg

Model EK-1201 EK-2201 EK-3201 EK-4201 EK-6201 Capacity 1220 g 2200 g 3200 g 4200 g 6200 g Readability 0.1 g Repeatability (standard deviation)*i 0.1 g Linearity ±0.1 g ±0.2 g Stabilization time*ii Approx. 0.8 seconds Weighing pan size 170 × 133 mm External dimensions 190 (W) × 205 (D)*iii × 54 (H) mm Net weight Approx. 1.5 kg

Model EK-6200 EK-12000 Capacity 6200 g 12200 g Readability 1 g Repeatability (standard deviation)*i 1 g Linearity ±1 g Stabilization time*ii Approx. 0.8 seconds Weighing pan size 170 × 133 mm External dimensions 190 (W) × 205 (D)*iii × 54 (H) mm Net weight Approx. 1.5 kg

*i Repeatability can worsen depending on the environmental conditions and operator skills. *ii Typical for 100 g and 1,000 g on 0.01 g models and 0.1/1 g models respectively, when the response characteristic setting is 0 (at its fastest). *iii RS-232C connector included.
